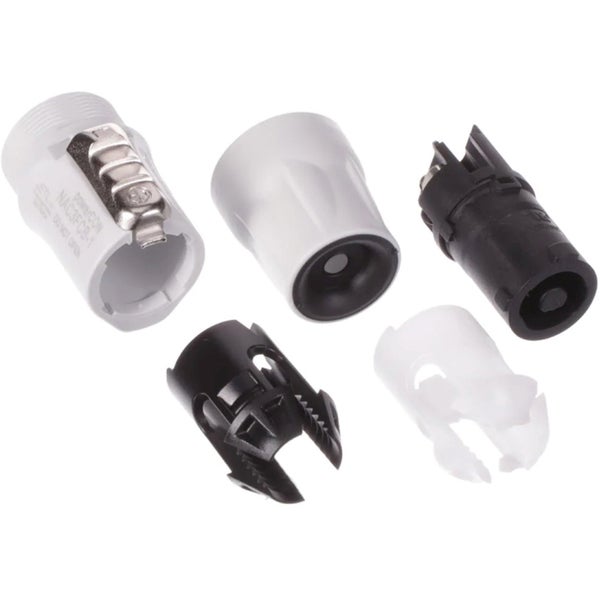

Neutrik NAC3FCB-1-D connecteurs Powercon (lot de 100)

Caractéristiques

• electrical:
  • contact resistance: ≤ 2 mΩ
  • dielectric strength: 4 kVdc / 2.8 kVac
  • isolation resistance: > 10 GΩ (initial)
  • number of electrical contacts: 2 + PE
  • classification (Europe) EN 61984:20 A 250 V AC
  • classification (US): UL 1977:20 A 250 V AC
• mechanical:
  • cable OD: 6 - 15mm (1)
  • lifespan: > 1,000 coupling cycles
  • wire size: 2.5mm²
  • wire size: 12 AWG
  • locking mechanism: Quick Lock
    • (1) cable OD range limited to 6mm - 14mm according to VDE
• material:
  • contact plating: Ag
  • contacts: copper alloy
  • insert: polyamide (PA 6.6)
  • locking mechanism: zinc diecast
  • shell: polyamide (PA 6.6)
  • strain relief: polyacetal
• environment
  • temperature range: -30°C to +80°C
  • protection class: IP20
  • fire-safety classifcation: UL 94 V-0
